Astromania SGCMOS Series Telescope CMOS Camera - Great Camera for auto-Guiding and Multiple Types of Astrophotography - Monochrome Imaging

Crеаtіvе Prоduсt Astromania SGCMOS Series Telescope CMOS Camera - Great Camera for auto-Guiding and Multiple Types of Astrophotography - Monochrome Imaging Reviews

So you can check out the other reviews at Amazon.com

only with $ 169.99

Brand	Astromania
Focus Type	Manual Focus
Power Source	Battery Powered
Item Weight	11.2 Ounces
Voltage	5 Volts

---

• Carefully selected sensor with high sensitivity and fast frame rate,as well as long time exposure,protect window with double-side AR coating. Aluminum CNC housing with standard 1.25" interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens.
• A built-in ST4 auto guider port for the easy connection of the auto guider,thermal design to transfer the sensor heat to the aluminum house quickly.
• Dedicated astrophotography software to support video preview, video record, video processing, image capture and process, dark field correction and raw data output.
• 1.25" nosepiece for precise focusing and 1.25” astronomical filter installation,Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares.

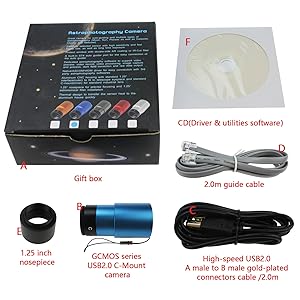

• A:Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box) B:GCMOS series USB2.0 C-Mount camera C:High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m D:2.0m guide cable E:1.25 inch nosepiece F:CD (Driver & utilities software, Ø12cm).

---

Product Description

Astromania is a manufacturer and trader specialized in the research, development and production of astronomical instruments with well-equipped testing facilities and strong technical force.

Our wide selection of over 500 Astromania accessories at great sale prices will help you get the best performance from your telescope each and every night. From specialty eyepieces and power boosting Barlow lenses to sturdy tripods and protective cases, Astromania has all the accessories you need to get the best performance from your telescope.

Astromania SGCMOS Series Telescope CMOS Camera - Great Camera for auto-Guiding and Multiple Types of Astrophotography - monochrome Imaging

Astromania SGCMOS Series Telescope CMOS Camera is guiding CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. A built-in ST4 auto guider port is designed for the easy connection of the auto guider.Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens.Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography software.The SGCMOS camera can be widely used in astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae).

Read more

The advantages in a nutshell:

• highly sensitive MT9M034(M)
• large field of view and high 1.2 MP resolution
• perfect tracking for astronomy photos - ST 4 autoguider port
• software and drivers on CD-Rom
• C-mount connection
• up to 30 frames per second

Large field of view and high resolution

• With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.

A master among autoguiders

• The sensitivity of the chip means this camera is perfect for autoguiding. Even if you can only find fainter stars in the immediate vicinity, it is simply no problem for the Astromania CMOS Camera. Just connect the camera to your mount via the built-in ST-4 port and you immediately have perfectly tracked exposures of galaxies and nebulae.

Planetary imaging and guiding camera from Astromania - the key to successful planetary photos

• The Astromania CMOS Camera is a highly sensitive planetary camera which can turn you into a successful planetary photographer. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.

Read more

Different stars photographed with Astromania SGCMOS Series Telescope CMOS Camera

The planet Jupiter, taken with a Astromania camera.

Different stars photographed with Astromania SGCMOS Series Telescope CMOS Camera

Arzachel with the Rupes Recta in the Mare Nubium. Photographed using a Astromania camera.

Different stars photographed with Astromania SGCMOS Series Telescope CMOS Camera

The lunar crater Alphonsus, taken using a Astromania camera.

Different stars photographed with Astromania SGCMOS Series Telescope CMOS Camera

Series of exposures of Jupiter, taken with Astromania camera and 10" telescope.

Figure A

Figure B

Figure C

Figure D

• Sensor & Size(mm):1.2M/MT9M034(M); 1/3“(4.8x3.6)

1. Pixel(μm):3.75 x3.75
2. G Responsivity:6.5v/lux-sec; 85.3dB; 44dB
3. FPS/Resolution:28@1280x960; 30@640x480
4. Binning:1x1, 2x2
5. Exposure(ms):0.4ms~2000ms

• Other Specification for SGCMOS Cameras:

1. Spectral Range: 380-650nm (with IR-cut Filter), 350-1050nm(with double side AR Coating protect window)
2. White Balance: ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
3. Color Technique: Ultra-FineTM Color Engine/NA for Color Sensor
4. Capture/Control API: Native C/C++, C#, DirectShow, Twain
5. Recording System: Still Picture and Movie
6. Cooling System*: Natural with High Performance Cooling Structure
7. Guiding Port: ST4-port

• Operating Environment:

1. Operating Temperature(in Centidegree): -10~ 50
2. Storage Temperature(in Centidegree): -20~ 60
3. Operating Humidity: 30~80%RH
4. Storage Humidity: 10~60%RH
5. Power Supply: DC 5V over PC USB Port

• Software Environment:

Operating System:

• Microsoft Windows XP / Vista / 7 / 8 (32 & 64 bit) (Please con tact us for the signed driver for Win10)
• Linux/Mac OSX

PC Requirements:

• CPU: Equal to Intel Core2 2.8GHz or Highe
• Memory:2GB or More
• USB Port:USB2.0 High-speed Port
• Display:17” or Larger
• CD-ROM

---

Product information

Product Dimensions	16.2 x 6 x 8 inches
Item Weight	11.2 ounces
ASIN	B07CNGN22V
Item model number	SKU_AM_CMOSBW2
Customer Reviews	3.6 out of 5 stars 34 ratings 3.6 out of 5 stars
Best Sellers Rank	#89 in Telescope Finder Scopes
Is Discontinued By Manufacturer	No
Date First Available	August 3, 2016
Manufacturer	Astromania
